FLEXIBLE COUPLING

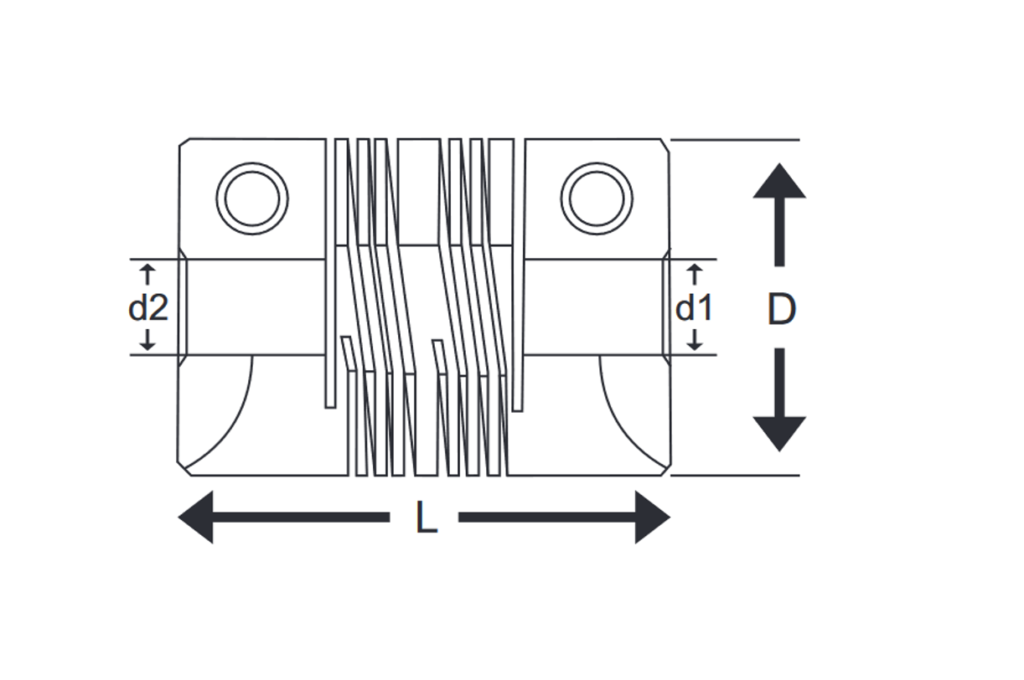

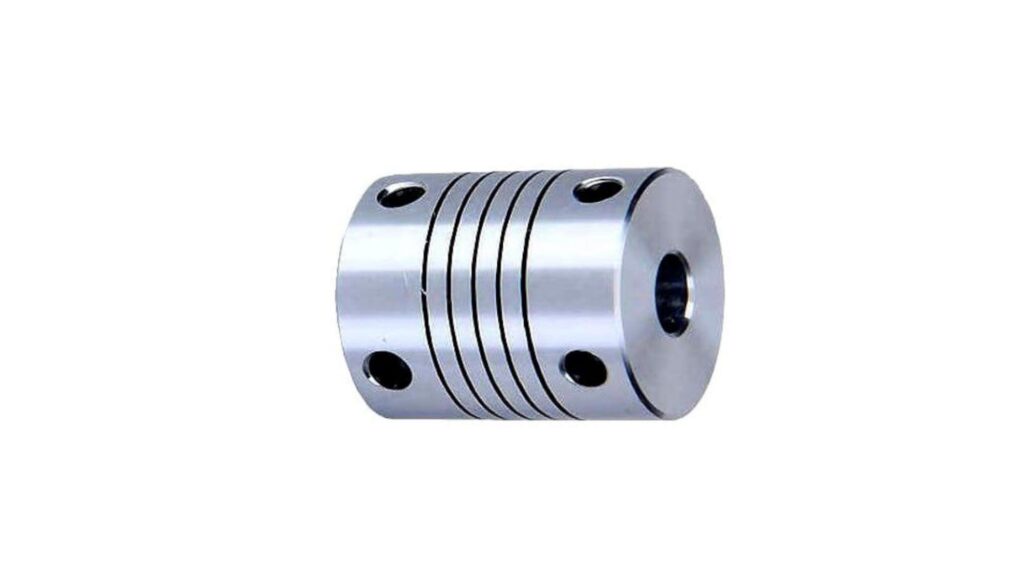

ENCODER COUPLING
Description :
- The Coupling Is Curved Drum Cut Into Single Homogenous Price Of Material.
- It Transmit Torque As Compression Or Tension Yet Is Laterally Flexible And Torsionally Rigid.
- Dosing factors for rotating Shaft Flexible Coupling.
- The coupling may operate at Low or High Speed.
- Constant Velocity and angular accuracy are assured as the driven hub turns the same as the driven hub turns the same as the driving hub.
- Zero backlash in the coupling
DISC COUPLING
Description :
- Small- and medium-capacity model, which is made of a high-strength aluminum alloy and whose outer hub diameter is linked to the shaft diameter to achieve a ultra-low inertia ideal for high – speed rotation.
- Three different shapes are available depending on the combination of bore diameters you use.
- Disc Couplings are made with Disc Set and Aluminium Hubs for clamping.
- These Discs are bolted alternately to the Aluminium Hubs from both sides of Disc Sets.
- Disc Flexible Coupling (DFC) the three or five pieces’ assembly of B no.
- Aluminium or C no. Aluminium hubs and A no. or B no. of Stainless Steel Disc sets.
- These three or five parts are assembled with bolts with precision.
- This assembly becomes a Backlash Free and High Torsional Stiff, precise, long life Disc Coupling.

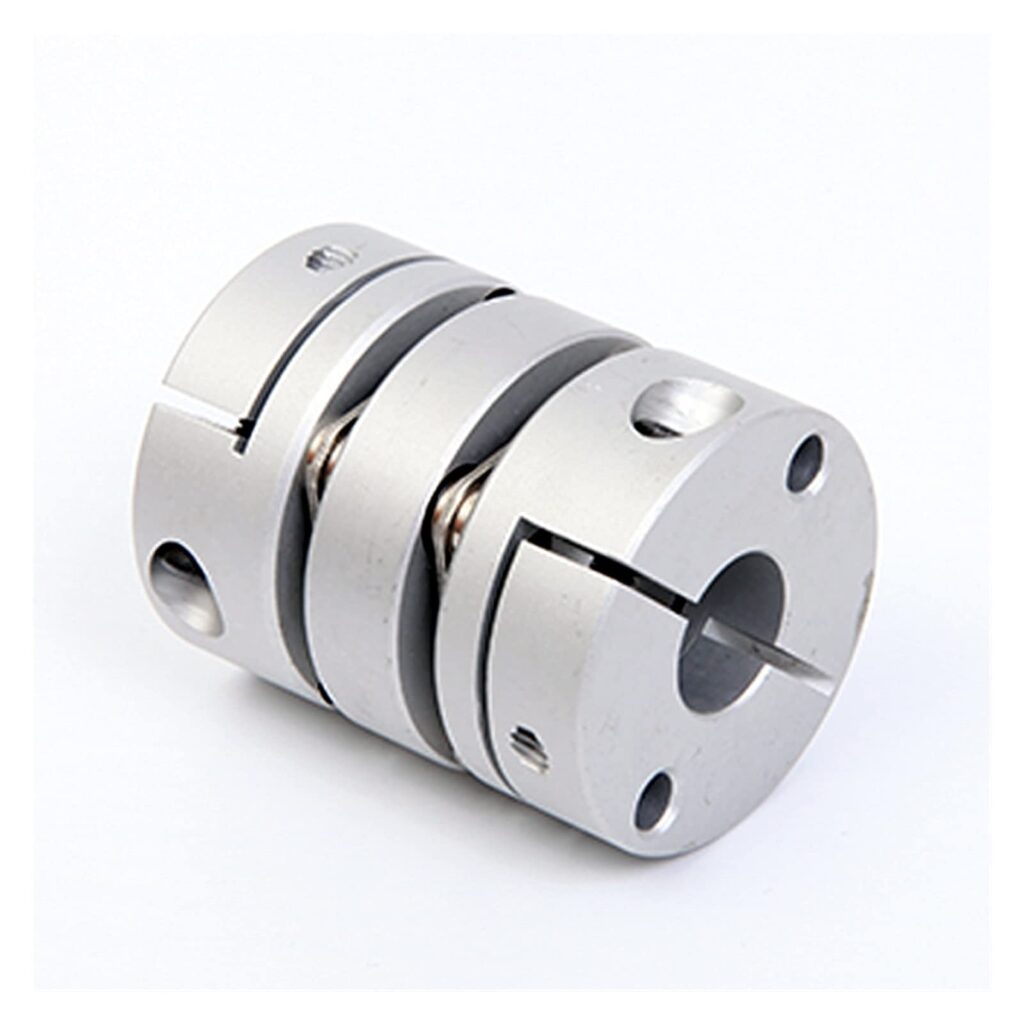

DOUBLE DISC COUPLING

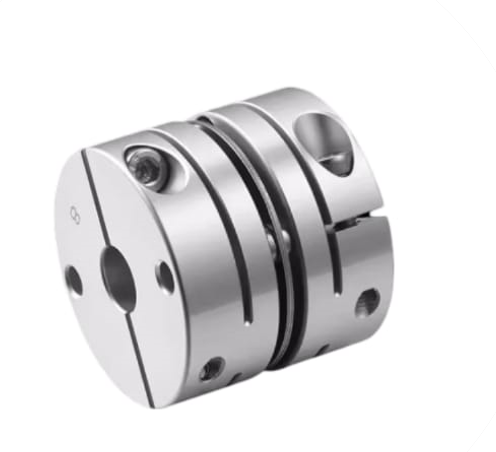

SINGLE DISC COUPLING
